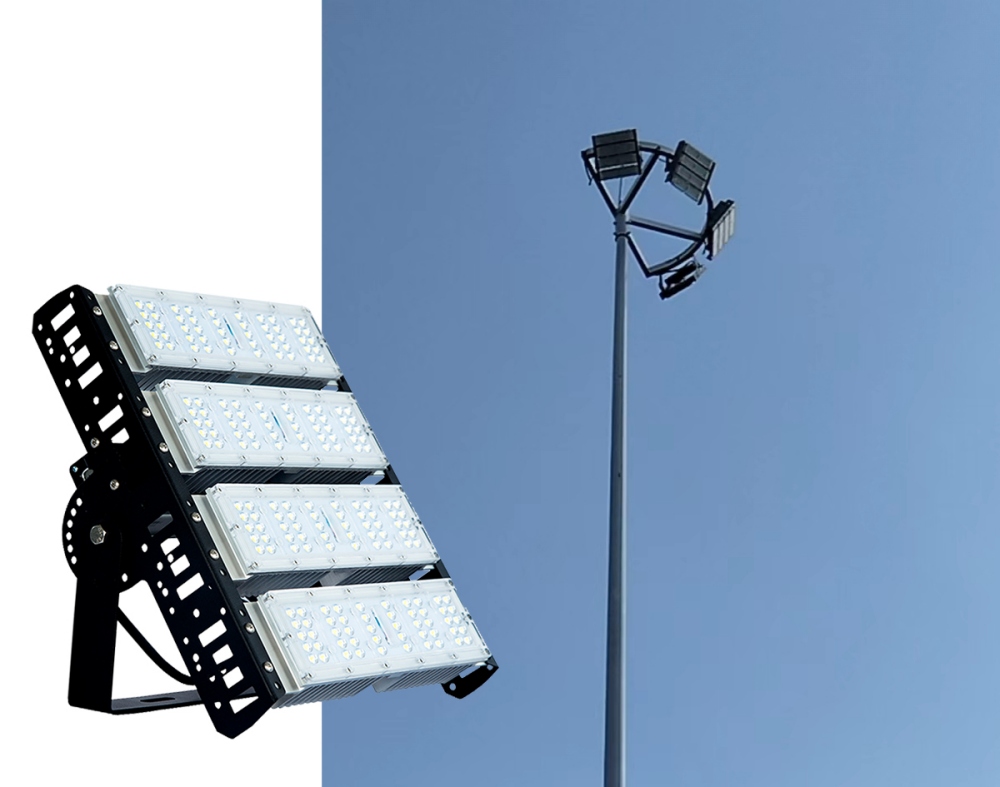

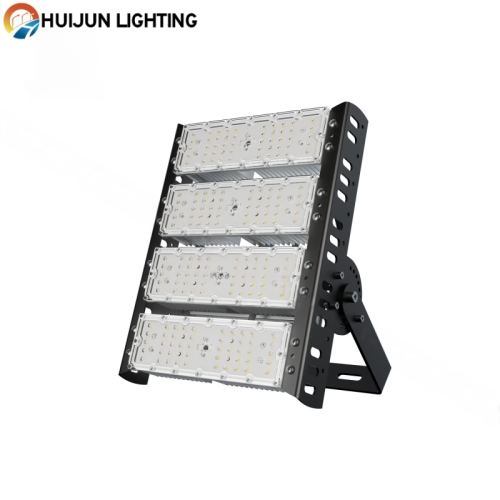

Square lighting LED Floodlights

Product Description

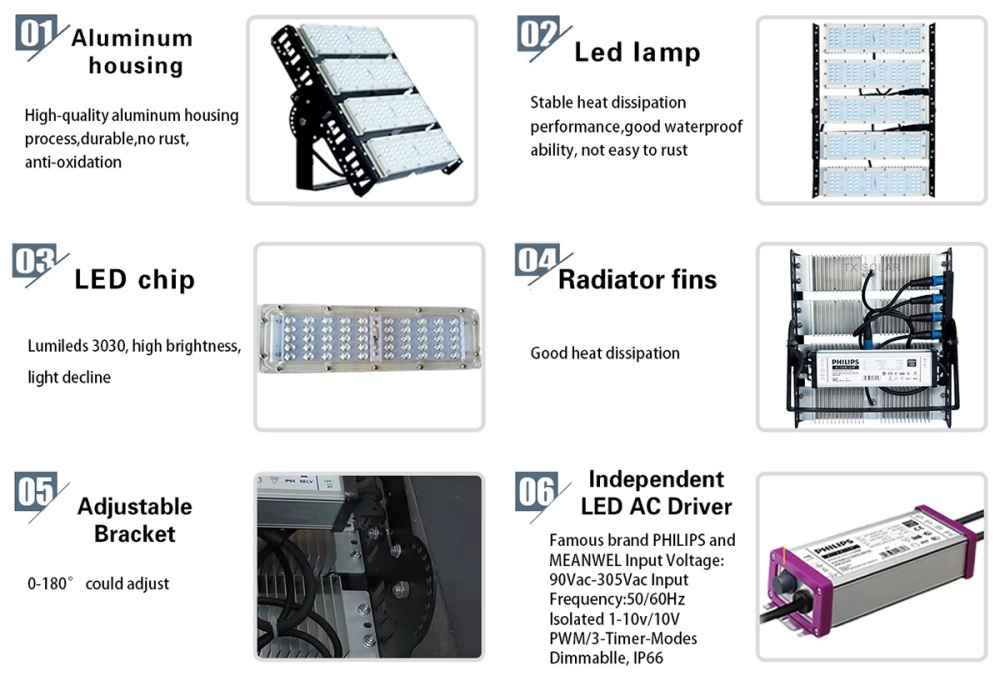

Our square and stadium LED floodlight features a high-quality die-cast aluminum housing with a robust structure and a large integrated fin-type heat dissipation design that significantly enhances thermal performance and ensures long-term stable operation of both the LED chips and the driver. The surface is treated with corrosion-resistant coating, capable of withstanding salt spray, humidity, and extreme outdoor conditions. The mounting bracket is made of high-strength galvanized steel and supports multi-angle adjustment to meet various illumination requirements.

The light source uses high-brightness LED chips (optional brands include Cree, Philips, Osram, etc.), achieving a luminous efficacy of 120–160 lm/W with a high color rendering index. It provides uniform and comfortable lighting and offers different beam angle options such as narrow, medium, and wide beam, suitable for squares, professional stadiums, architectural lighting, and large-area illumination.

The driver adopts a high-quality constant-current design with multiple protection features including over-voltage, short-circuit, and over-temperature protection. It offers high efficiency, high power factor, wide-voltage input, and supports intelligent control options such as 0–10V dimming, DALI dimming, and light/time control.

With an IP66 protection rating, the floodlight delivers excellent waterproof, dustproof, and lightning protection performance, making it ideal for long-term outdoor use. Featuring high brightness, wide coverage, and outstanding durability, this floodlight is an excellent solution for squares, parks, stadiums, parking lots, building facades, and large outdoor lighting applications.

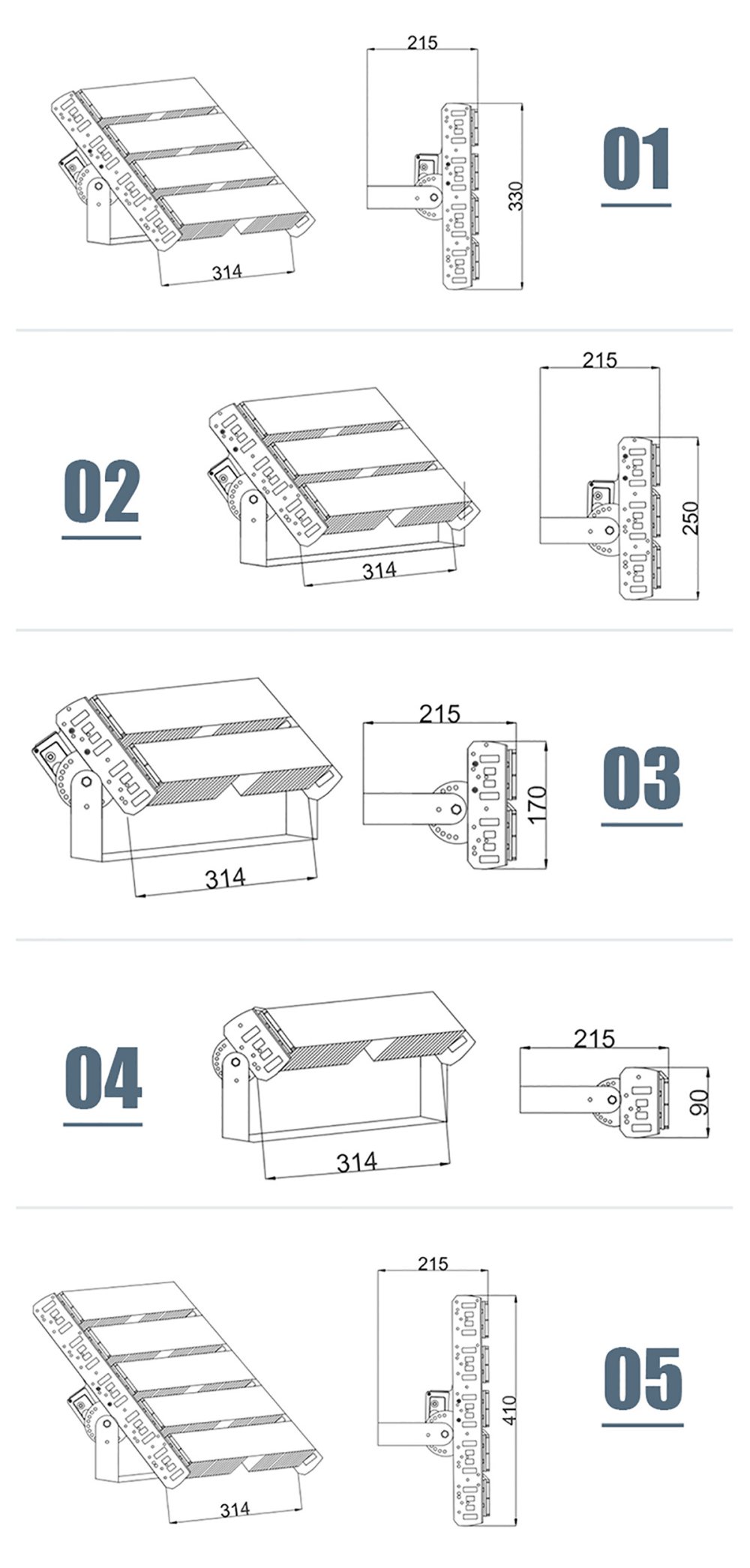

Product dimensions

Product Specifications
