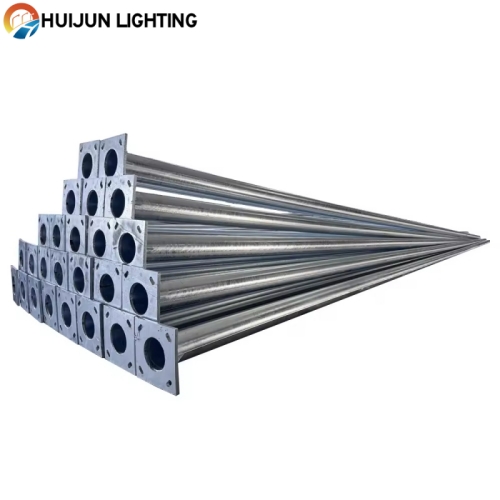

Hot-dip galvanized light poles
Product Description
The hot-dip galvanized street poles produced by Huijun Lighting are made of high-quality steel (customers can specify the steel grade) and undergo an overall hot-dip galvanizing process. This forms a dense and uniform anti-corrosion layer on the surface, effectively protecting the poles from rain, humidity, salt spray, and other environmental factors. Compared with ordinary painting, hot-dip galvanizing significantly extends the service life of the poles, maintaining excellent corrosion resistance even in harsh outdoor environments, with a lifespan of over 20 years.
The poles feature a robust structural design, providing excellent wind resistance and load-bearing capacity. They can accommodate a variety of lamp sizes, solar panels, or surveillance equipment. The surface can be powder-coated as required, with a wide range of color options, offering a visually appealing appearance suitable for urban roads, rural roads, parks, residential communities, and landscape lighting applications.
Huijun Lighting’s hot-dip galvanized street poles support customization of height, wall thickness, flange dimensions, and installation methods to meet the specific requirements of different projects. They are a high-quality lighting support solution that combines durability, safety, and aesthetic appeal.
Product Specifications
| |||||||
Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||||
Height | 5meters | 6meters | 7meters | 8meters | 9meters | 10meters | 12meters |
Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
Tolerance of dimension | ±2/% | ||||||
Minimum yield strength | 285Mpa | ||||||
Max ultimate tensile strength | 415Mpa | ||||||
Anti-corrosion performance | Class II | ||||||
Against earthquake grade | 10 | ||||||
Color | Customized | ||||||
Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||||
Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | ||||||
Arm Type | Customized: single arm,double arms,triple arms,four arms | ||||||
Stiffener | With big size to strength the pole to resist the wind | ||||||
Powder coating | Thickness of powder coating is 60-100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | ||||||
Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
Hot-Dip Galvanized | Thickness of hot-galvanized is 60-100um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | ||||||
Anchor bolts | Optional | ||||||
Material | Aluminium,SS304 is available | ||||||
Passivation | Available | ||||||
