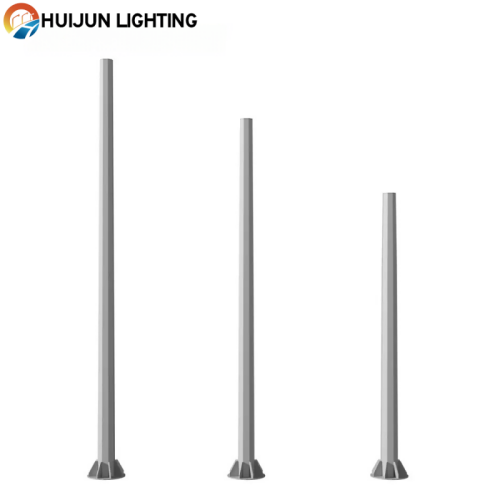

Octagonal street light pole
Product Description

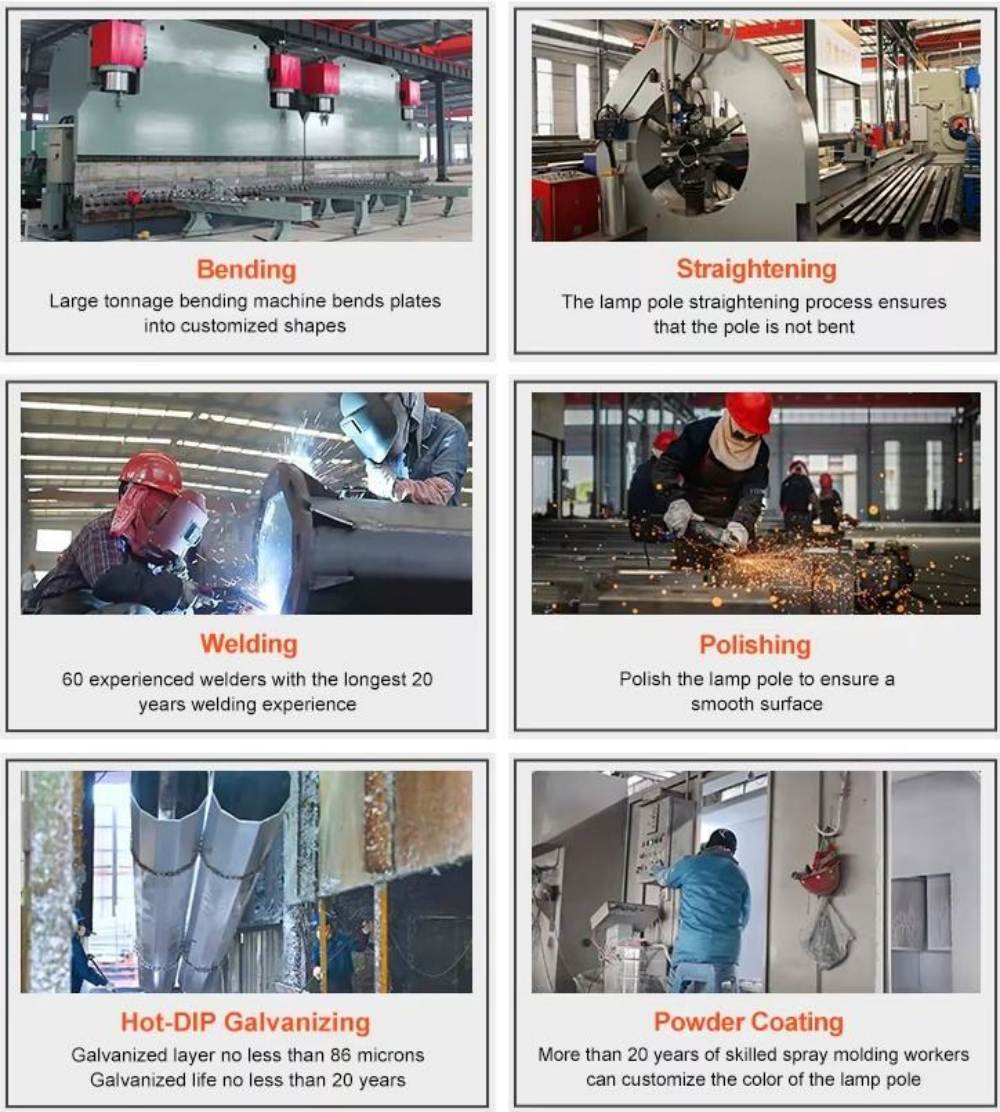

Our octagonal light poles are made from high-strength steel (commonly Q235, Q355, Q420, etc.), offering excellent mechanical performance and stability. This ensures sufficient load-bearing capacity and wind resistance for long-term outdoor use. Through precise plate bending and forming processes, the pole features a straight, elegant structure with smooth, refined lines.
In terms of welding, the poles utilize fully automatic longitudinal submerged arc welding or gas-shielded welding. The welds are full, smooth, and free from defects such as porosity or incomplete fusion, and the welding strength meets national and industry standards. All welded joints undergo strict inspection to ensure structural safety and reliability.
To enhance durability, the entire pole surface is treated with hot-dip galvanizing, forming a uniform and dense zinc coating that effectively resists moisture, salt spray, UV exposure, and other harsh environmental factors. This provides long-lasting corrosion protection. Upon request, we also offer post-galvanizing powder coating to further improve appearance and corrosion resistance.
Features
●High-quality steel construction: Made from high-strength materials such as Q235/Q355, providing strong load-bearing capability and adaptability to various installation environments.
●Precision welding process: Automated welding ensures high-quality welds with excellent strength and structural stability.
●High-standard anti-corrosion treatment: Hot-dip galvanizing with strong adhesion (zinc layer thickness > 85 µm), offering long-lasting durability and corrosion resistance.

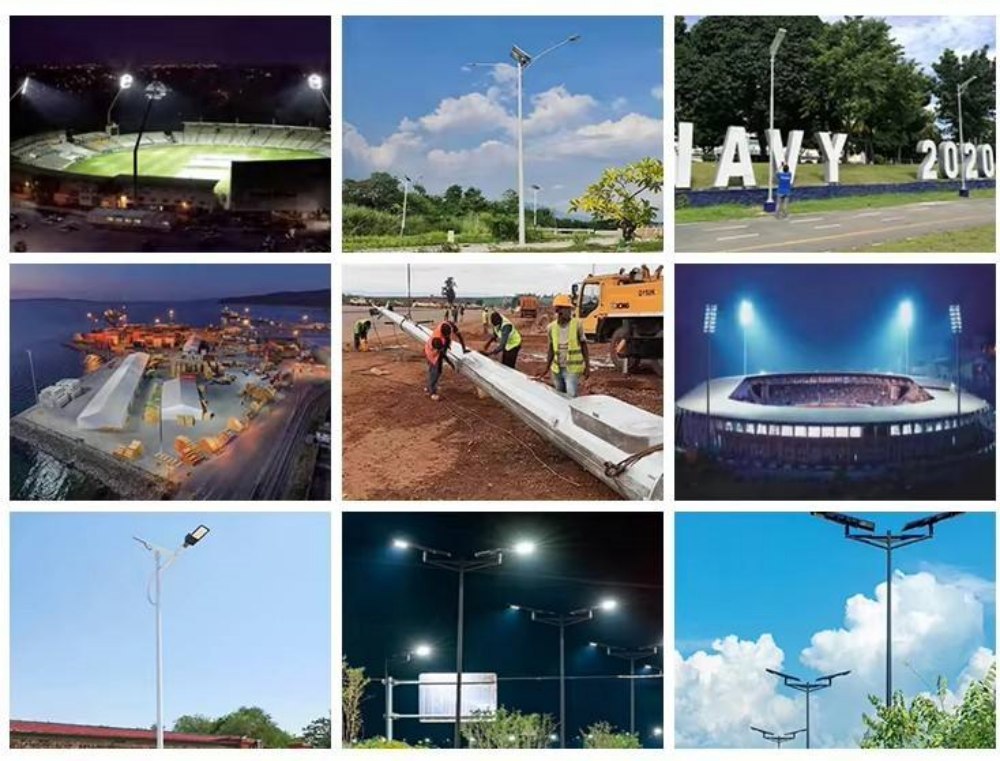

●Attractive appearance: Sturdy and elegant octagonal design, suitable for roads, plazas, campuses, parking lots, and other lighting applications (customization available).
Product Specifications
|
Recommended Configurations |
|
|
Poles height |
2m to 50m |
|
Thickness |
1.8mm-20mm |
|
Warranty(Year) |
20 Year |
|
Material |
Steel;Q235B;Q345;Q355 |
|
Shape |
Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape |
|
Brackets/ Arm |
Single or double brackets/ arm are in the shape and dimension as per customers requirement |
|
Welding |
It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international |
|
surface treatment |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard |
|
Base plate mounted |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
|
Wind resistance |
Customized,according to customer's environment |
|
Powder coating |
Pure polyester powder painting, color is optional according to RAL Color stardand. |
|
supportCustomized/Design Service |
support |
|
ODM/OEM |
support |
